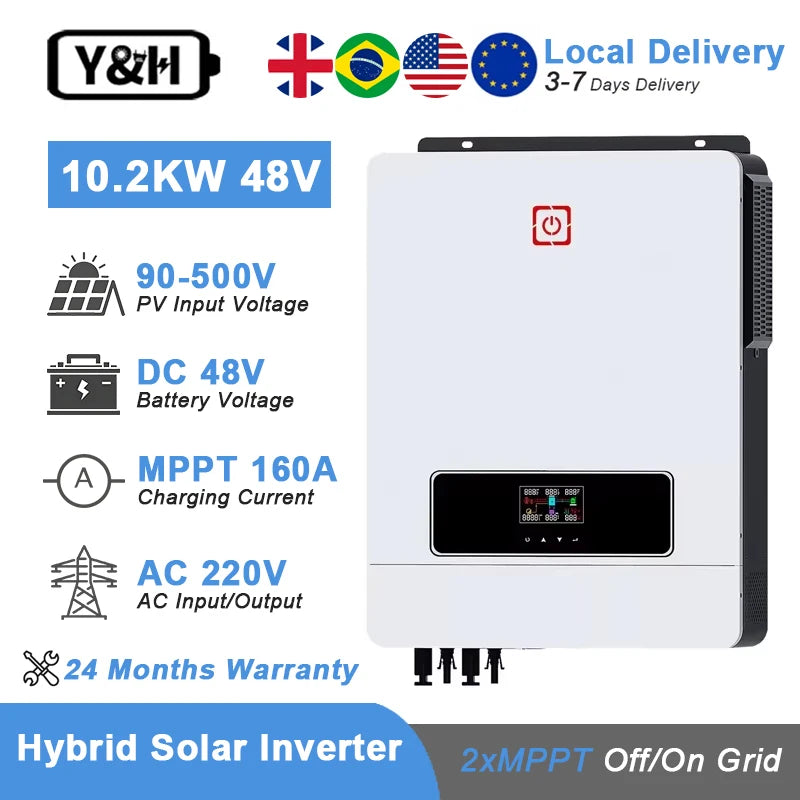

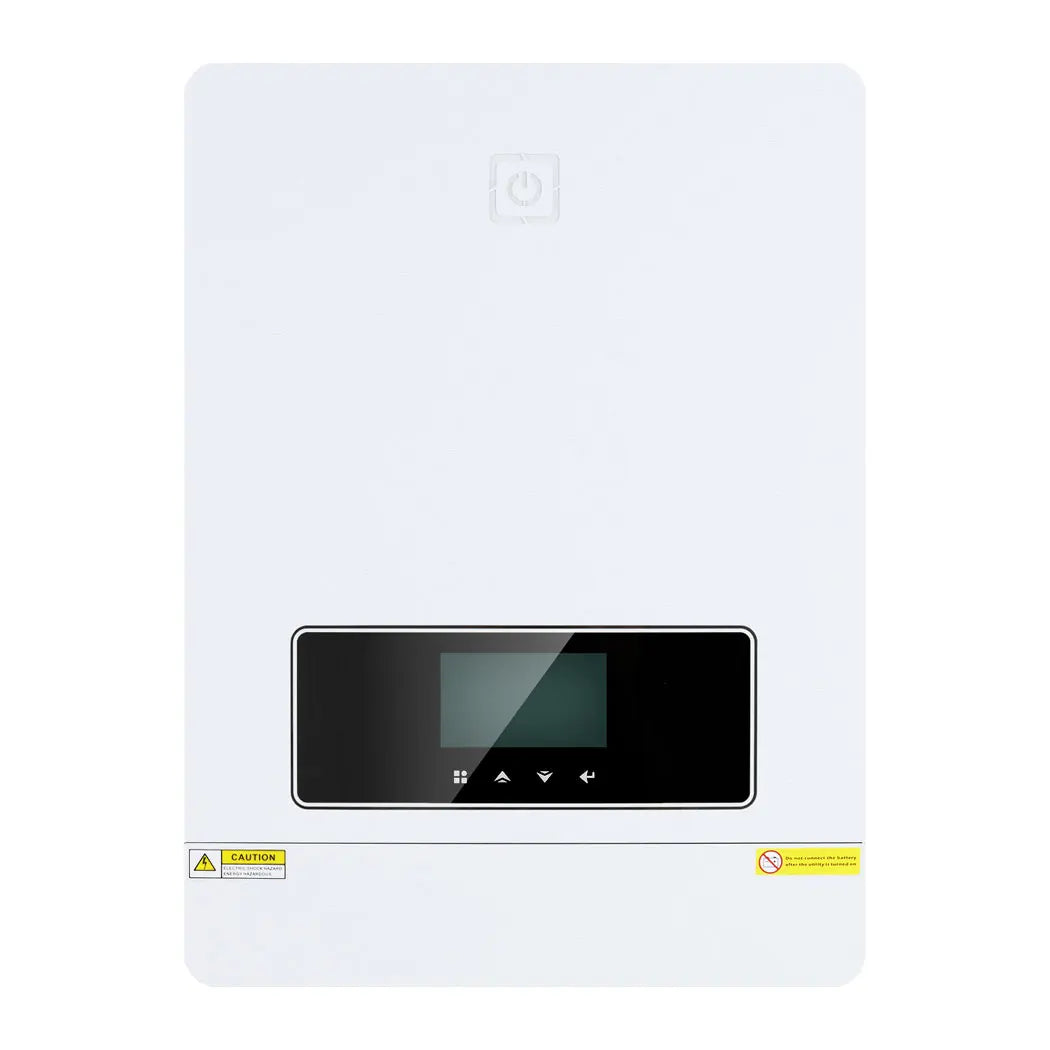

YH Off Grid Hybrid Inverter 10.2KW Dual MPPT 160A Solar Controller 48V 230V Dual PV Max Input 500V Sine Wave Inverter
YH Off Grid Hybrid Inverter 10.2KW Dual MPPT 160A Solar Controller 48V 230V Dual PV Max Input 500V Sine Wave Inverter
Couldn't load pickup availability
Power your off-grid life with the Y&H 10.2KW hybrid inverter, delivering dual MPPT solar control and pure sine wave performance for dependable energy.

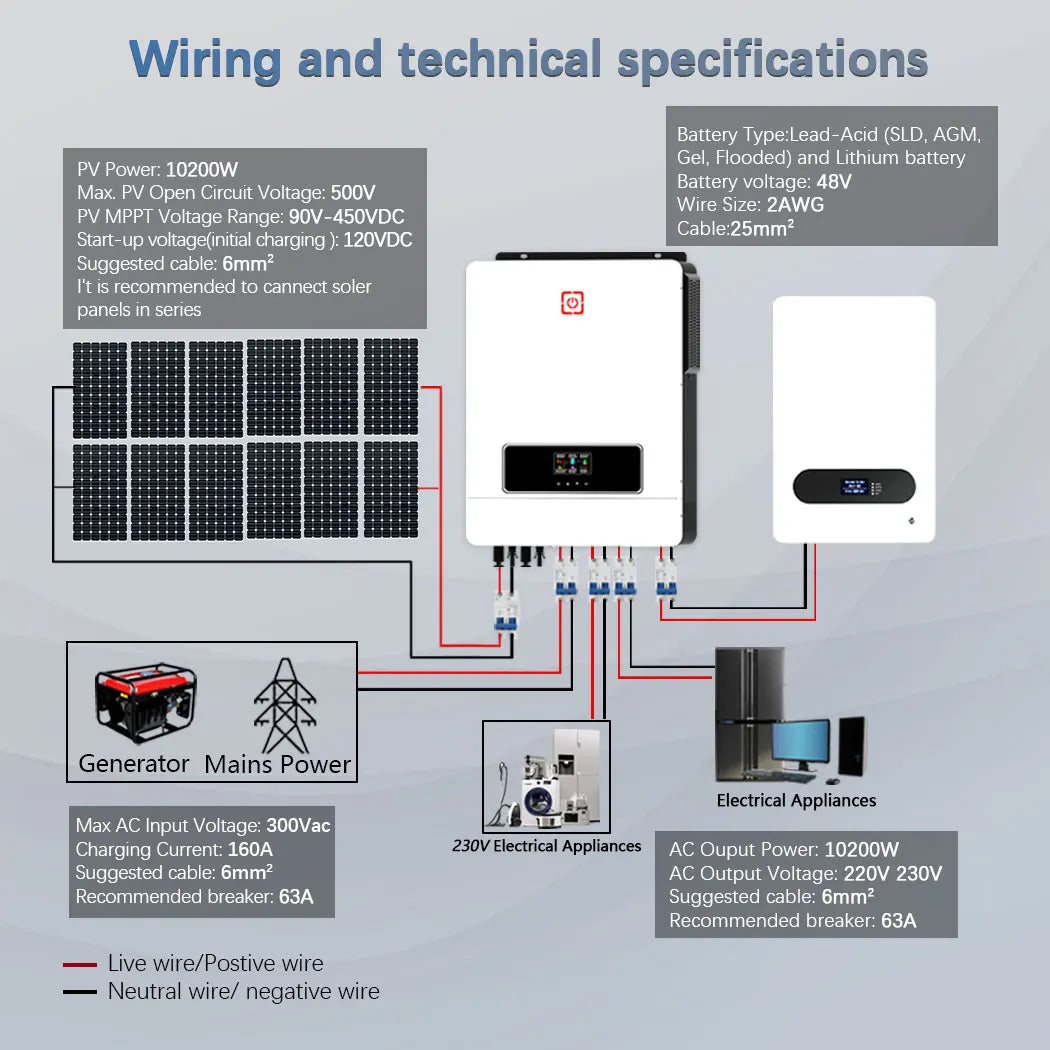

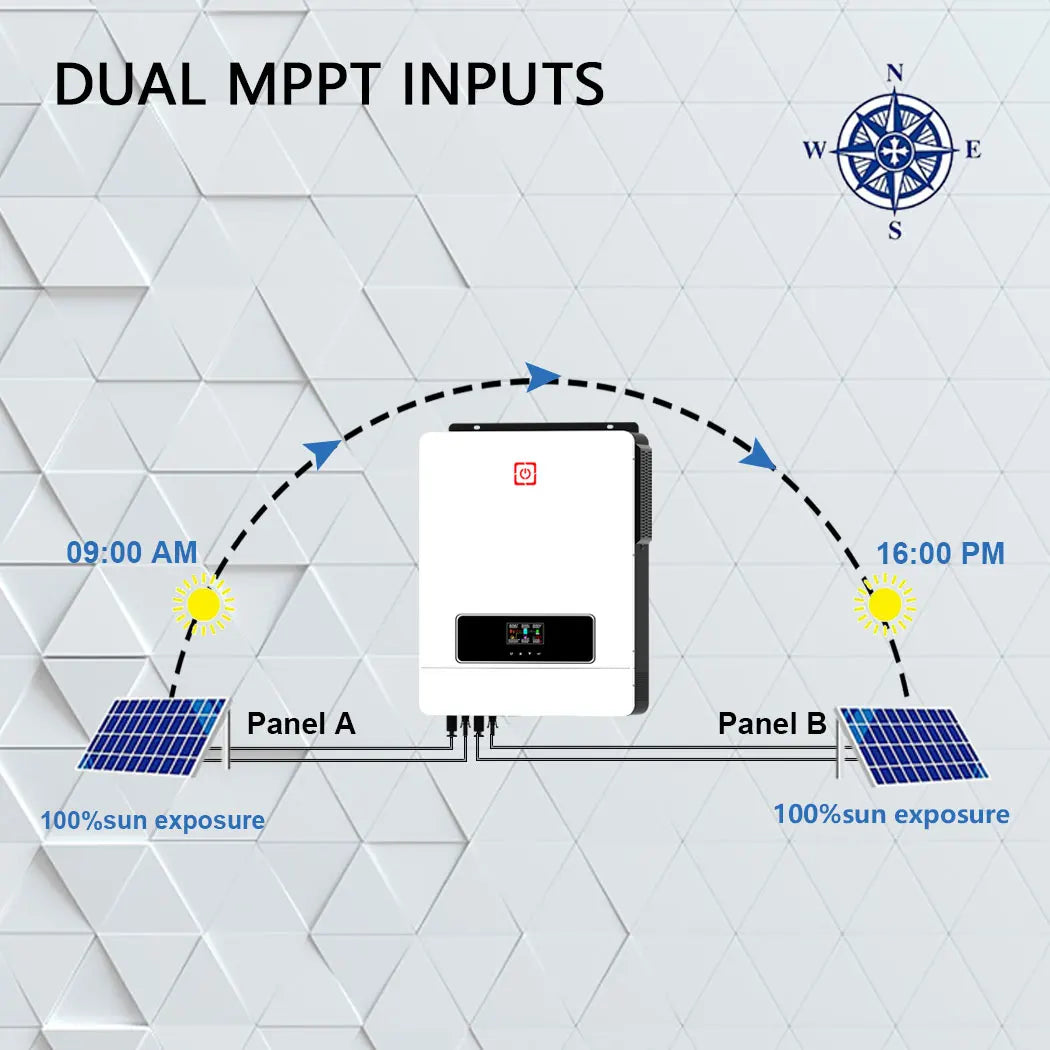

- Dual MPPT solar controller (160A total) supports two PV inputs up to 5400W each, for a combined 10200W, with a 500V DC PV open-circuit limit.
- Pure sine wave output at 220/230/240VAC with auto-sensing 50/60Hz and a 48V system, ensuring compatibility with sensitive loads and battery charging.
- Off-grid and grid-ready operation with dual AC outputs (main and second) and smart battery charging to optimize your life and performance.

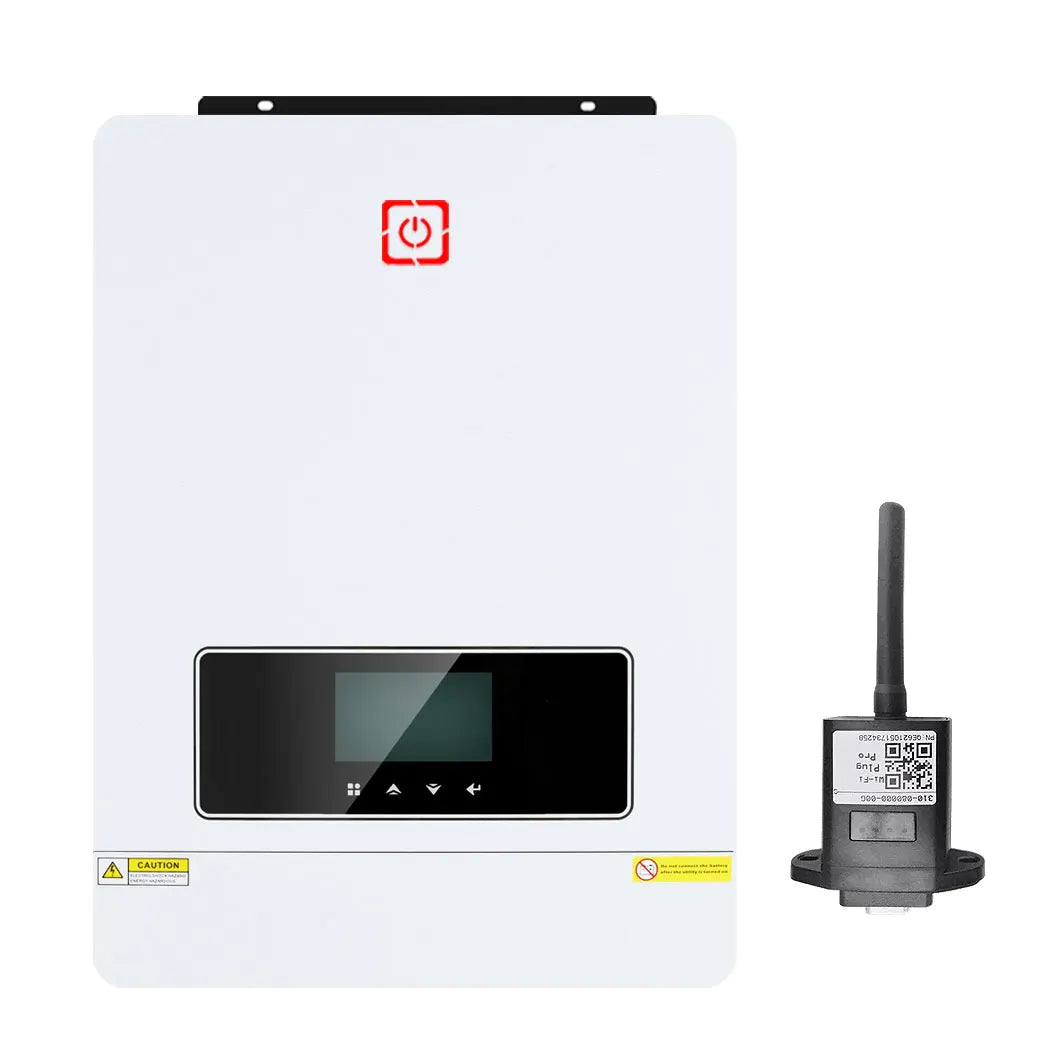

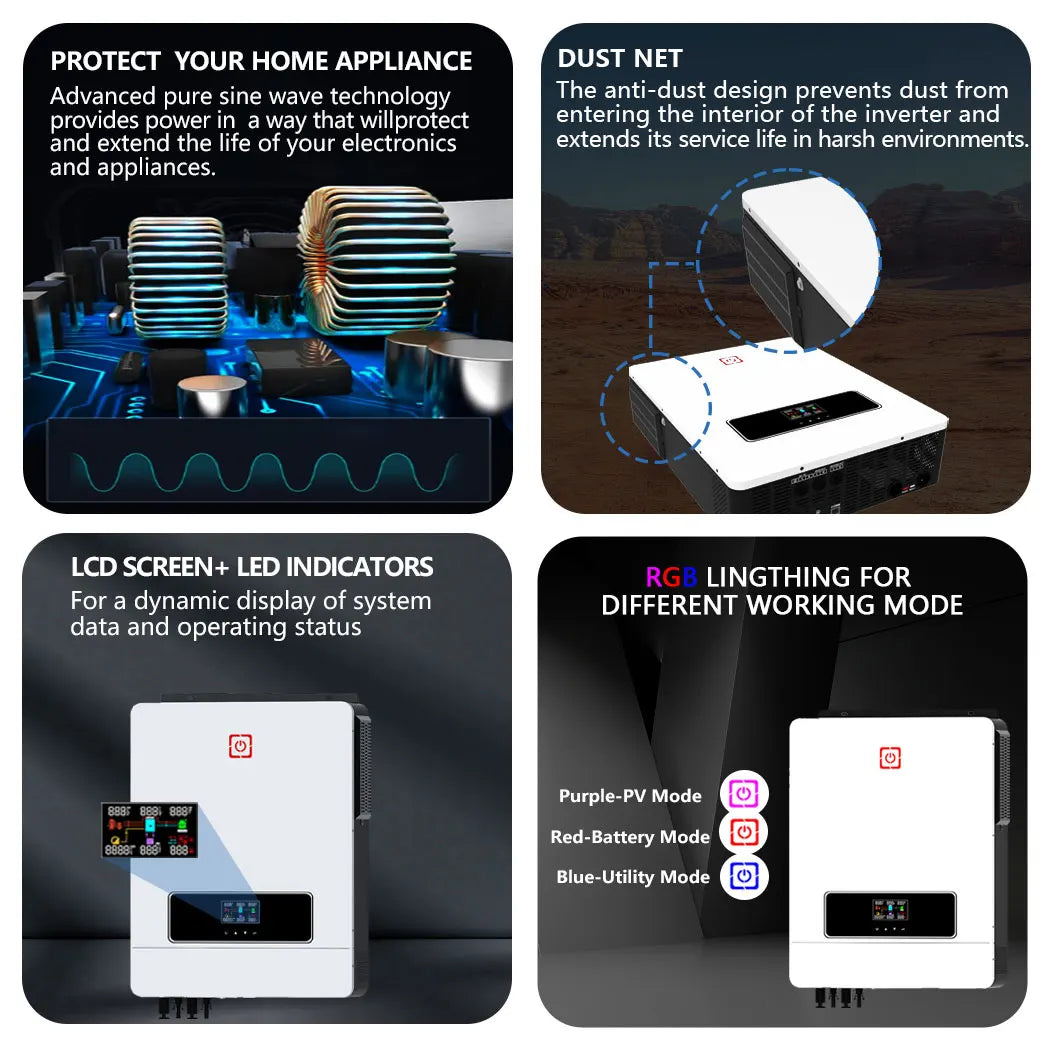

- Connectivity and resilience: built-in anti-dusk kit for harsh environments, WiFi/GPRS for mobile monitoring, and a wide PV input range (90–500VDC).
INVERTER MODEL |
8.2KW |
10.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50Hz |
|
Peak Efficiency |
93% |
|
Nominal DC Input Voltage |
48Vdc |
|
High DC Recovery Voltage |
62Vdc |
|
High DC Cut-off Voltage |
63Vdc |
|
No Load Power Consumption |
70W |
75W |
Two Load Output Power | ||
Full Load |
8200W |
10200W |
Maximum Main Load |
8200W |
10200W |
Maximum Second Load(battery model) |
2733W |
3400W |
Main Load Cut Off Voltage |
44VDC |
|
Main Load Return Voltage |
48VDC |
|
Utility Charging Mode | ||
AC Charging Current(Max) |
140Amp |
160Amp |
Floating Charging Voltage |
54Vdc |
|
MPPT Solar Charging Mode | ||
Max.PV Array Power |
8200W |
10200W |
Nominal PV Voltage |
360Vdc |
|
PV Array MPPT Voltage Range |
90Vdc~500Vdc |
|
Max.PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current |
160Amp |
160Amp |
Grid-Tie Operation | ||
Nominal Output Voltage |
220/230/240VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Feed-in Grid Frequency Range |
49~51±1Hz/59~61±1Hz |
|
Nominal Output Current |
35.6A |
44.3A |
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency |
98% |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
-10℃ to 50℃ |
|
Storage temperature |
-15C~60℃ |
|
Humidity |
5%to 95% Relative Humidity(Non-condensing) |
|
Dimension(D*W*H),mm |
||
